Compact Scrap Grapple Bucket

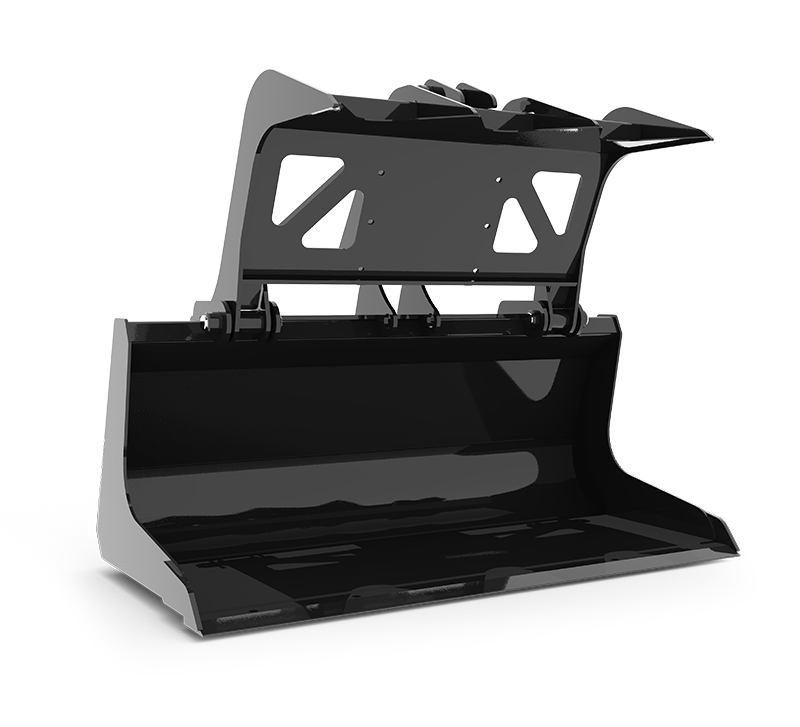

  • View the main image of the Compact Scrap Grapple Bucket

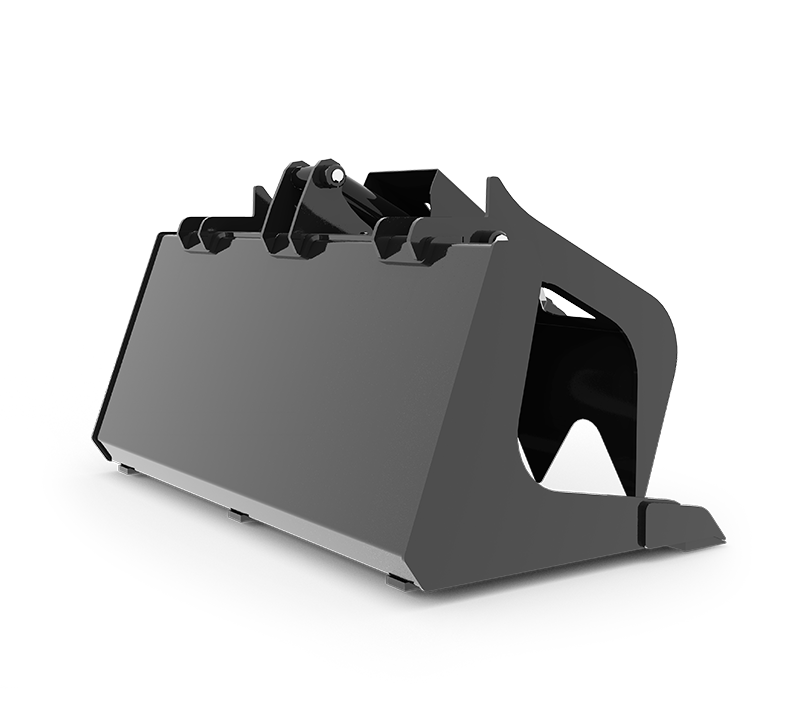

  • View the second image of the Compact Scrap Grapple Bucket

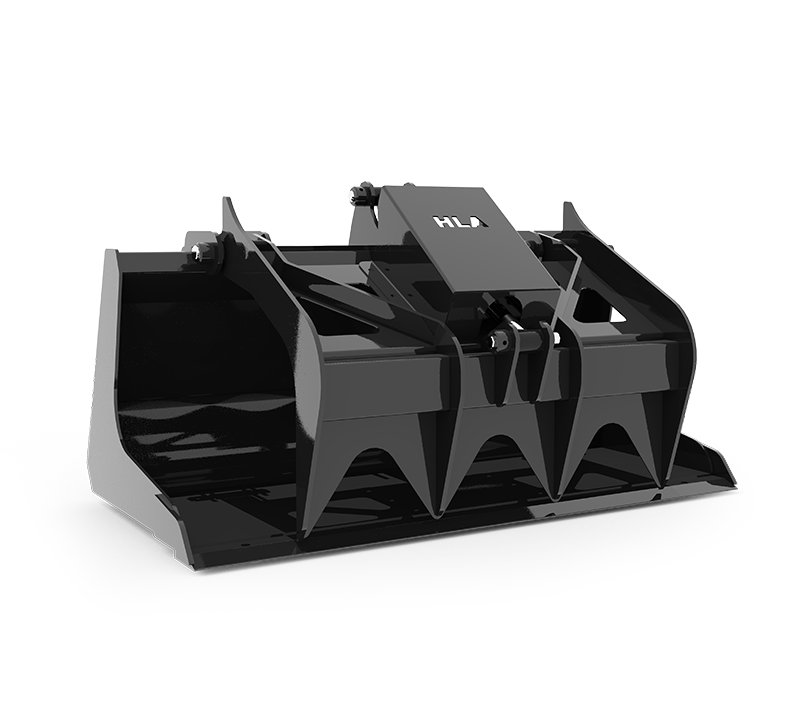

  • View the third image of the Compact Scrap Grapple Bucket

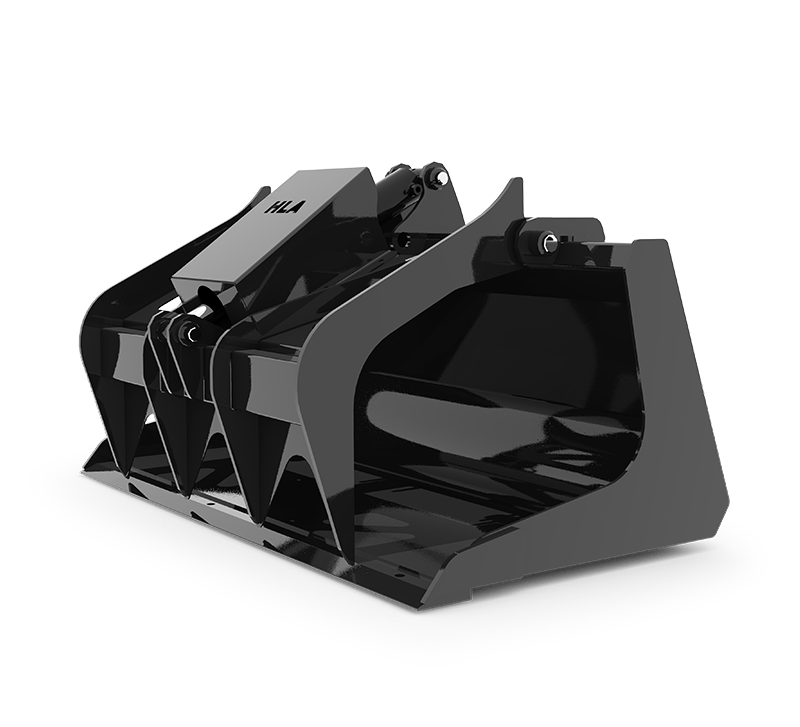

  • View the fourth image of the Compact Scrap Grapple Bucket

Compact Scrap Grapple Bucket

  • 3/16" material, 1/4" end plates
  • 3/4 X 4 bevelled cutting edge
  • Single grapple arm
  • 26" overall height
  • 26" overall depth
  • Opens to 36"
  • Comes with 2-1/2" x 8" cylinder
  • Drilled for standard bolt on cutting edge
  • Add 2" to Inside Width column to calculate Outside Width of bucket
Part Number Description INSIDE WIDTH (INCHES)STRUCK CAP.
CU. FT.
SAE
HEAPED CAP.
CU. FT.
APPROX. WEIGHT
LBS.
SGBC3636" Compact Scrap Grapple Bucket365.46.9440
SGBC4242" Compact Scrap Grapple Bucket426.38.0445
SGBC4848" Compact Scrap Grapple Bucket487.29.2450
SGBC5454" Compact Scrap Grapple Bucket548.110.4465
SGBC6060" Compact Scrap Grapple Bucket609.011.6480
HK90Optional 90" Hose Kit c/w Flat Faced Couplers
HK9090Optional 90" Hose Kit c/w 90° Flat Faced Couplers
SHMKOptional Spring Hose Mount Kit
