Low Profile Skidsteer Bucket - HEAVY DUTY

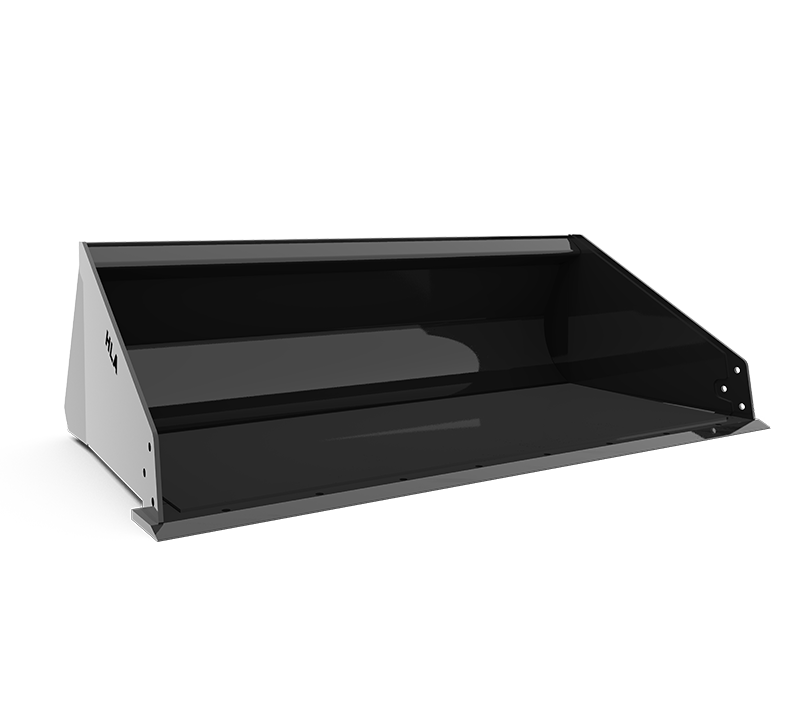

  • View the main image of the Low Profile Skidsteer Bucket - HEAVY DUTY

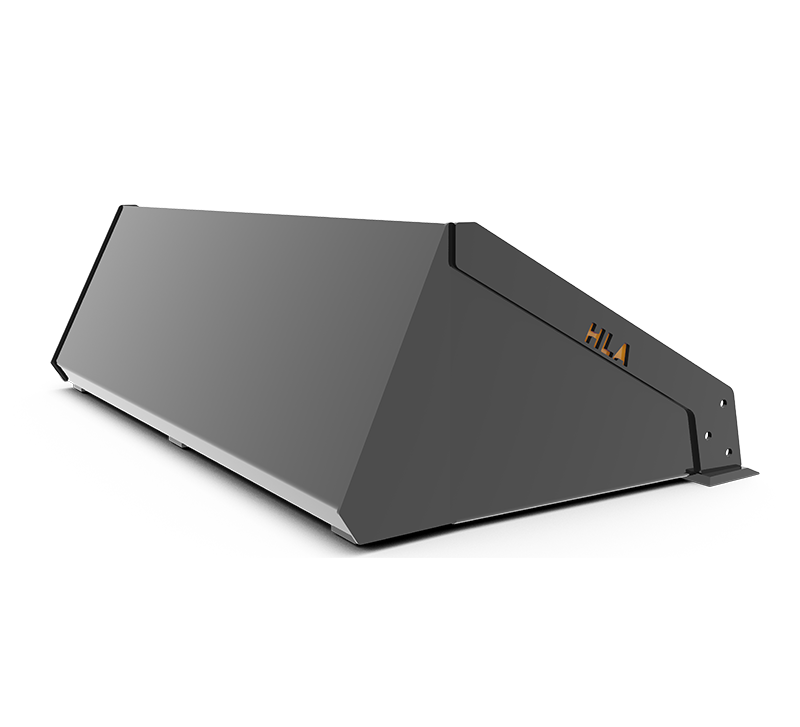

  • View the second image of the Low Profile Skidsteer Bucket - HEAVY DUTY

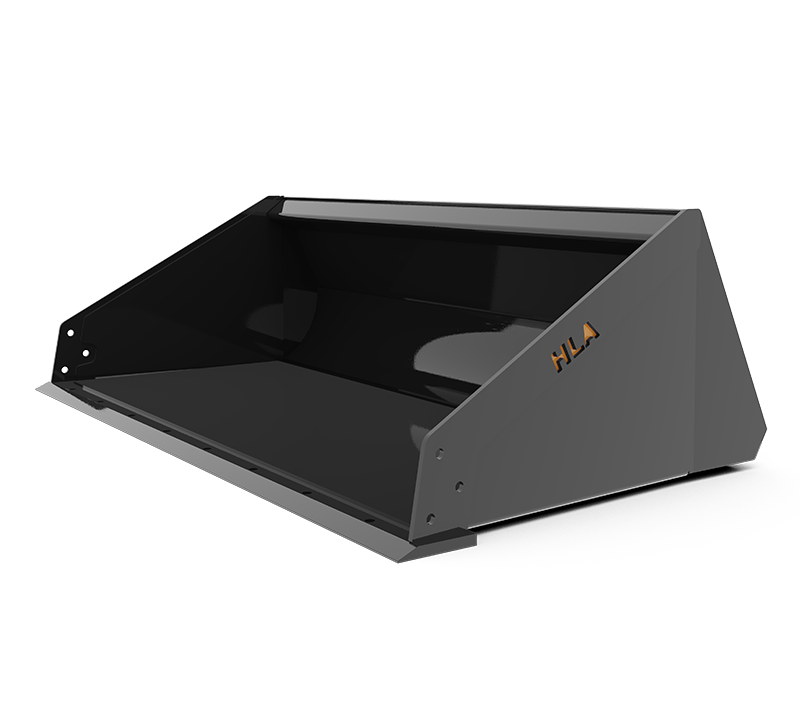

  • View the third image of the Low Profile Skidsteer Bucket - HEAVY DUTY

Low Profile Skidsteer Bucket - HEAVY DUTY

  • Heavy duty
  • 1/4" Material, 1/4" end plates;
  • 3/4 X 6 bevelled cutting edge
  • Reinforced top lip
  • 34" deep, 19" high
  • Lower back and longer base enables operator to see cutting edge of bucket
  • Drilled for standard bolt on cutting edge
  • Tapered end plates are self-cleaning and reduces material build-up
  • Add 2" to Inside Width column to calculate outside Width of bucket
Part Number Description INSIDE WIDTH
INCHES
STRUCK CAP. - LEVELSTRUCK CAP. HEAPEDAPPROX. WEIGHT
LBS.
SBLP48HD48" Hd Low Pro Skidsteer Bucket488.311.3470
SBLP54HD54" Hd Low Pro Skidsteer Bucket549.412.8505
SBLP60HD60" Hd Low Pro Skidsteer Bucket6010.414.3545
SBLP66HD66" Hd Low Pro Skidsteer Bucket6611.416.1580
SBLP72HD72" Hd Low Pro Skidsteer Bucket7212.517.4625
SBLP78HD78" Hd Low Pro Skidsteer Bucket7813.518.9665
SBLP84HD84" Hd Low Pro Skidsteer Bucket8414.620.4700
SBLP96HD96" Hd Low Pro Skidsteer Bucket9616.823.3760

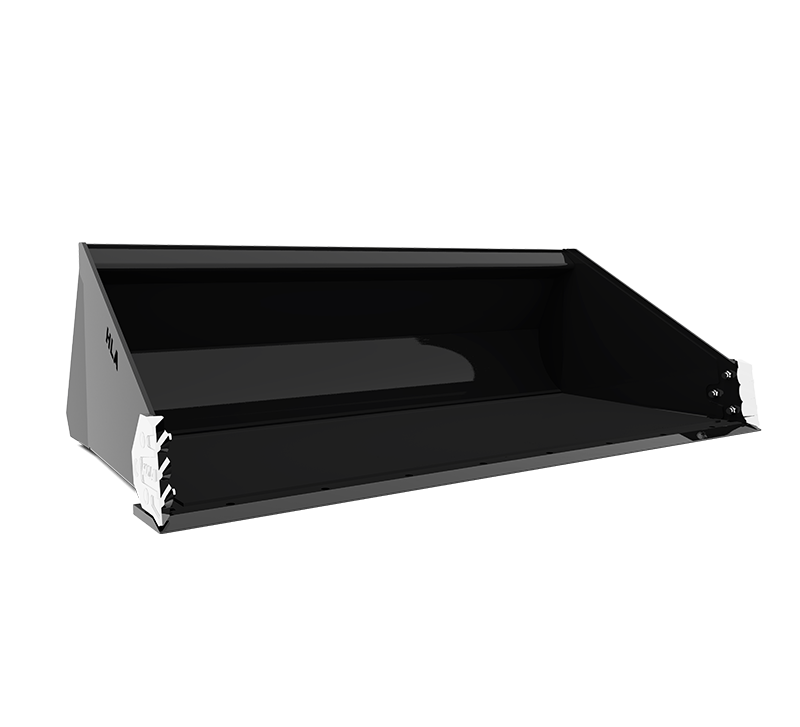

346CEBOptional 346CEB 3/4 X 6 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
348CEBOptional 348CEB 3/4 X 8 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
346CESBOptional 346CESB 3/4 X 6 Single Bevel Serrated Bolt On Cutting Edge c/w Bolts & Nuts
RTMBKOptional RTMBK Knock On Ripper Teeth c/w Weld On Adapter & Flex Pin
