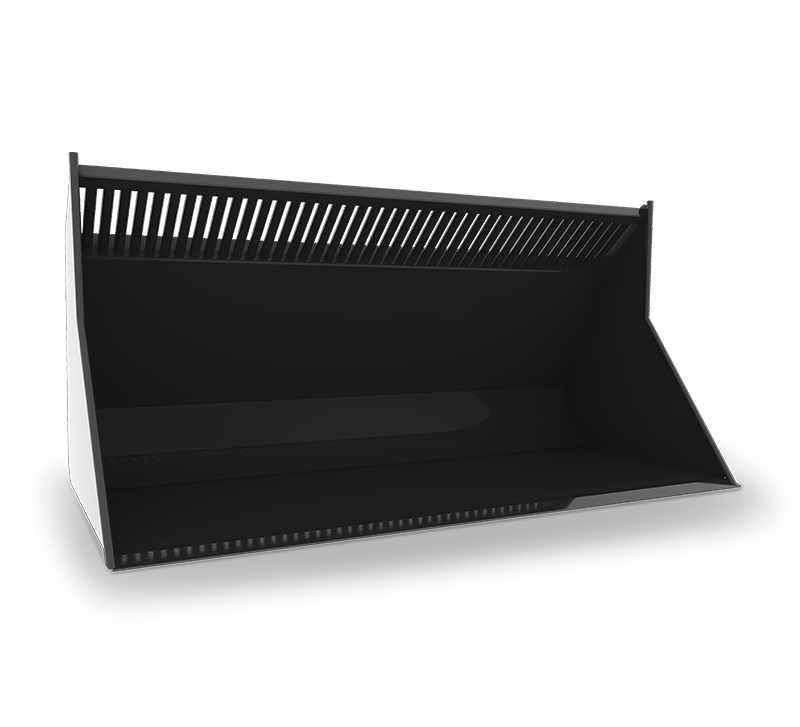

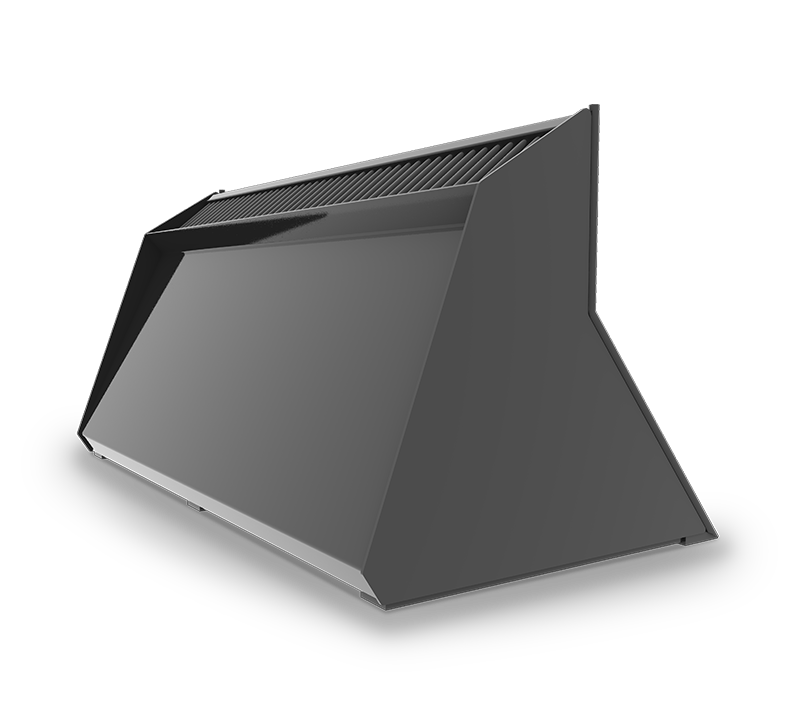

Produce Skidsteer Bucket

Produce Skidsteer Bucket

  • No sharp edges for gentle handling of produce
  • Screened back for better visibility
  • 31" deep, 31" high
  • Made of the same material as standard bucket
  • Drilled with counter sink holes for special produce bolt on cutting edge
  • NOTE: Add 1" to Inside Width column to calculate outside width of bucket
Part Number Description INSIDE WIDTH
INCHES
STRUCK CAP.
CU. FT.
SAE
HEAPED CAP.
CU. FT.
APPROX. WEIGHT
LBS.
SBP6060" Produce Skidsteer Bucket6018.522.9550
SBP6666" Produce Skidsteer Bucket6620.625.3585
SBP7272" Produce Skidsteer Bucket7222.427.7620
SBP7878" Produce Skidsteer Bucket7824.330.1670
SBP8484" Produce Skidsteer Bucket8426.232.5705
346CEPBOptional ¾ x 6 Single Bevel Bolt On Cutting Edge (drilled and tapped) c/w Countersink Bolts and Nuts
346CEBOptional 346CEB ¾ X 6 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
348CEBOptional 348CEB ¾ X 8 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
346CESBOptional 346CESB ¾ X 6 Single Bevel Serrated Bolt On Cutting Edge c/w Bolts & Nuts
