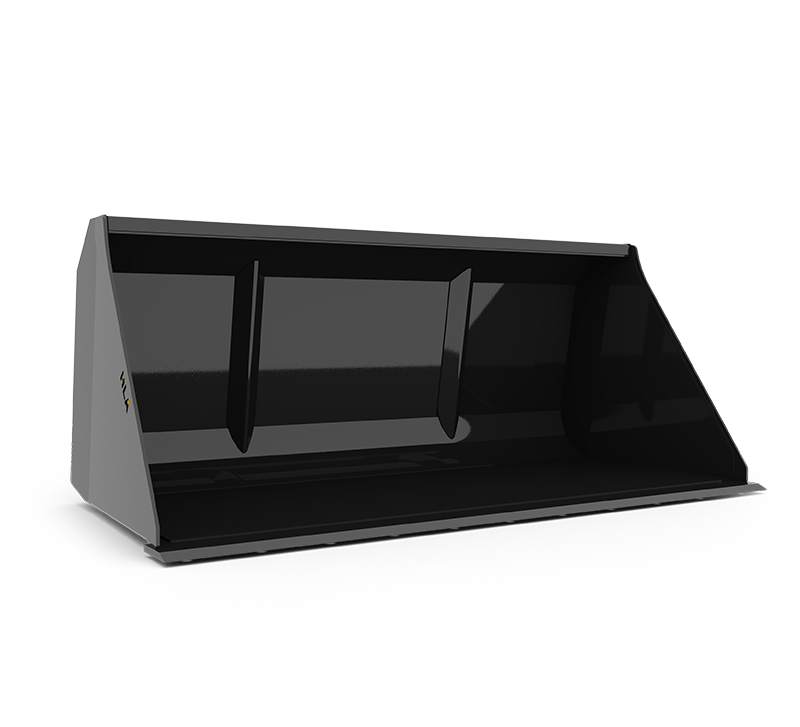

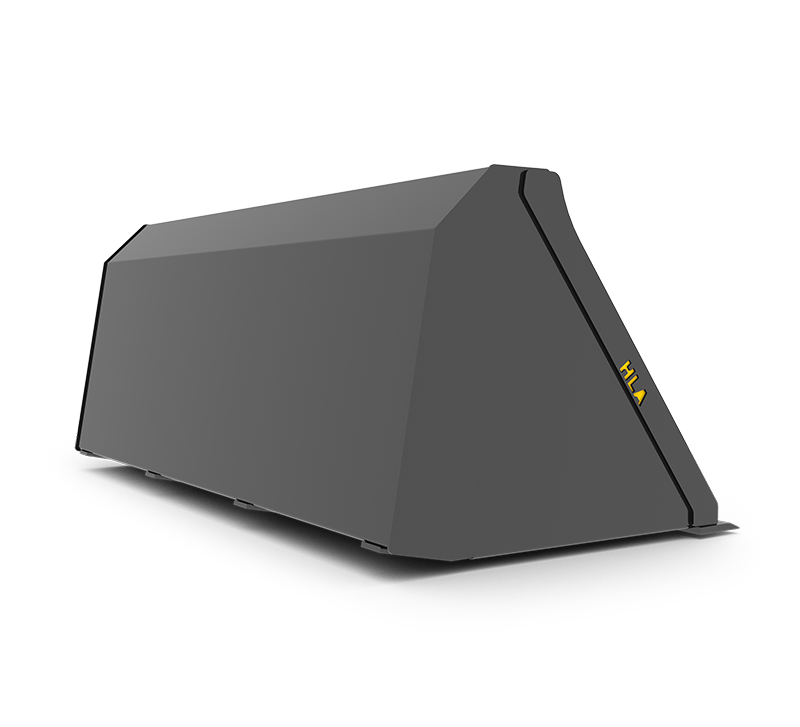

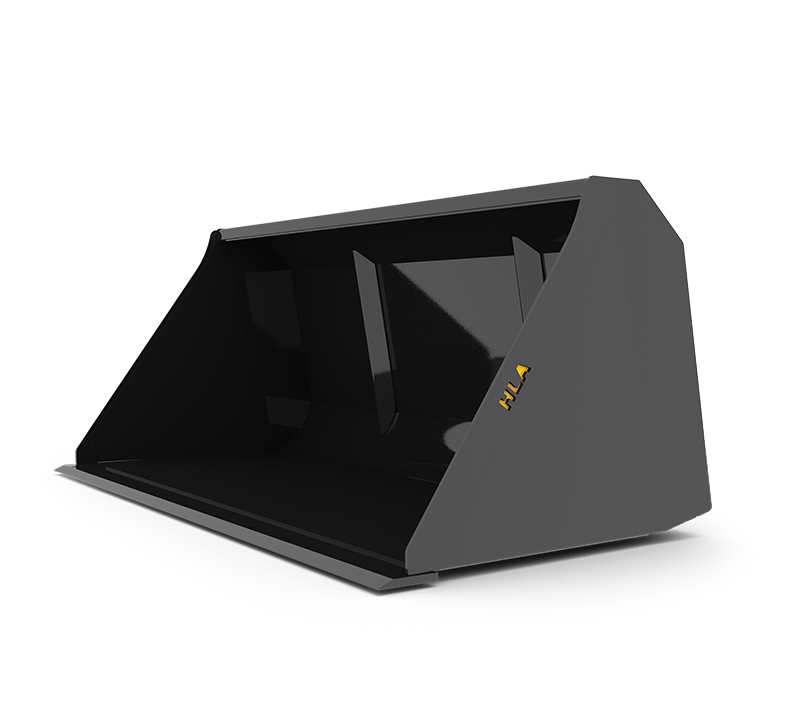

Extra High Volume Front End Loader Bucket - HEAVY DUTY

Extra High Volume Front End Loader Bucket - HEAVY DUTY

  • HEAVY DUTY
  • ¼" material, ¼" end plates
  • ¾ X 6 bevelled cutting edge
  • Reinforced top lip
  • 41" deep, 34" high
  • Reinforced round back and end plates for strength, easy filling & clean out
  • Flat top acts as level indicator
  • Drilled for standard bolt on cutting edge
  • Tapered end plates are self-cleaning and reduces material build-up
  • NOTE: Add 2" to Inside Width column to calculate outside width of bucket
Part Number Description INSIDE WIDTH INCHESSTRUCK CAP. CU. FT.SAE HEAPED CAP. CU. FT.APPROX. WEIGHT
LBS.
MBHVX60HD60" Hd Hvx Material Bucket6027.833.7725
MBHVX66HD66" Hd Hvx Material Bucket6630.737.3770
MBHVX72HD72" Hd Hvx Material Bucket7233.640.9820
MBHVX78HD78" Hd Hvx Material Bucket7836.544.5880
MBHVX84HD84" Hd Hvx Material Bucket8439.448.1925
MBHVX96HD96" Hd Hvx Material Bucket9645.255.31035
MBHVX108HD108" Hd Hvx Material Bucket1085162.51230
MBHVX120HD120" Hd Hvx Material Bucket12056.770.21350
346CEBOptional 346CEB 3/4 X 6 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
348CEBOptional 348CEB 3/4 X 8 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
346CESBOptional 346CESB 3/4 X 6 Single Bevel Serrated Bolt On Cutting Edge c/w Bolts & Nuts
