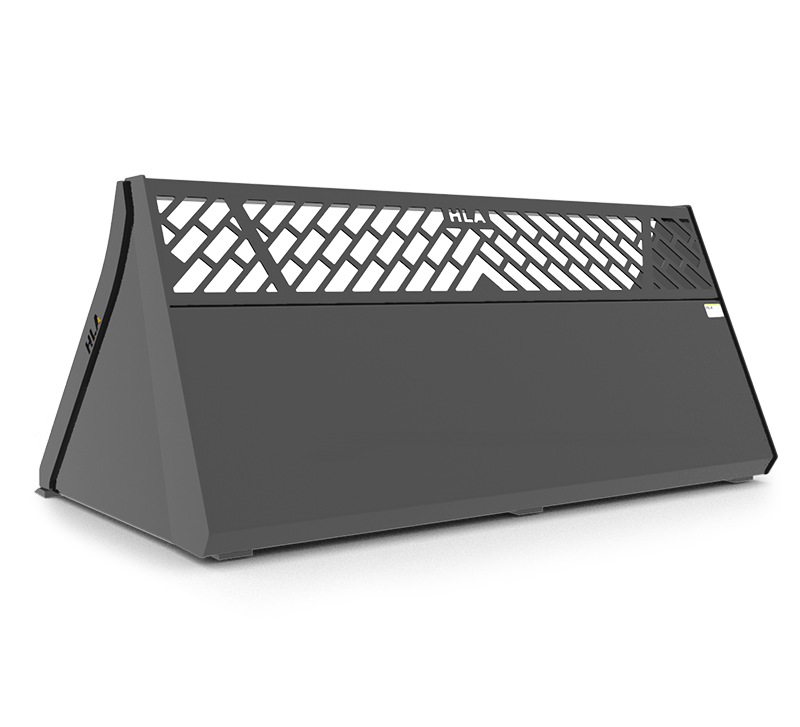

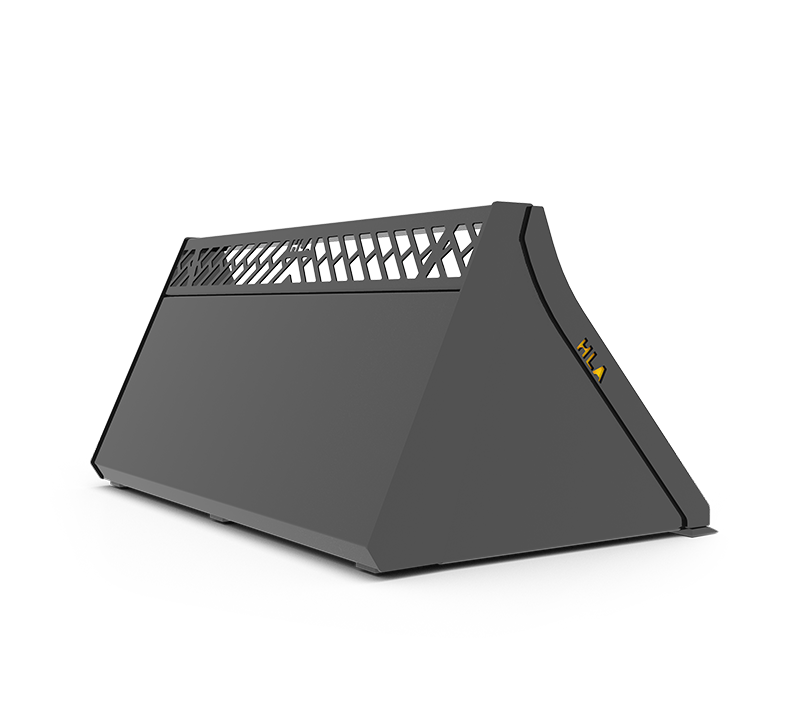

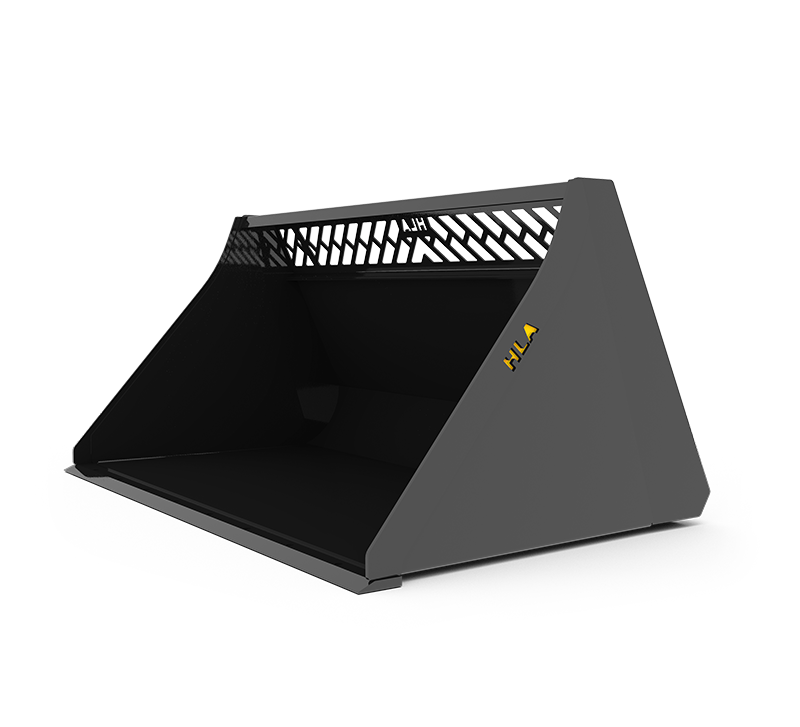

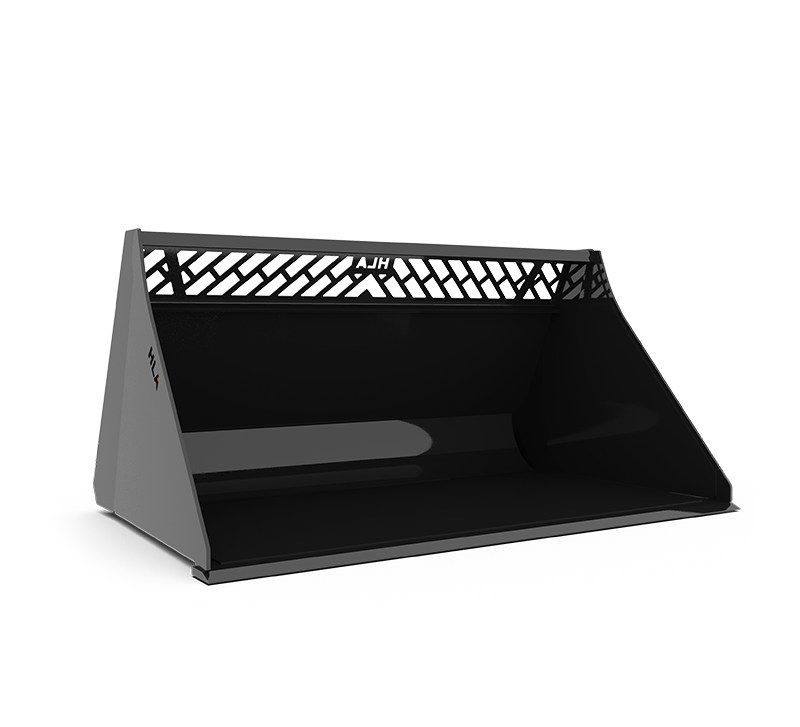

High Volume Skidsteer Snow Bucket
  • View the main image of the High Volume Skidsteer Snow Bucket
  • View the second image of the High Volume Skidsteer Snow Bucket

High Volume Skidsteer Snow Bucket

  • 3/16" material, ¼" end plates
  • ¾ X 4 bevelled cutting edge
  • Reinforced top lip
  • 39" deep, 31" high
  • Screened back for better visibility
  • Reinforced round back and end plates for strength, easy filling, & clean out
  • Flat top acts as level indicator
  • Tapered end plates are self-cleaning and reduces material build-up.
  • Drilled for standard bolt on cutting edge
  • NOTE: Add 2" to Inside Width column to calculate outside width of bucket
Part Number Description INSIDE WIDTH
INCHES
STRUCK CAP.
CU. FT.
SAE
HEAPED CAP.
CU. FT.
APPROX. WEIGHT
LBS.
SBSN60BO50060" Skidsteer Snow Bucket6023.629.0575
SBSN66BO50066" Skidsteer Snow Bucket6625.932.0610
SBSN72BO50072" Skidsteer Snow Bucket7228.335.1645
SBSN78BO50078" Skidsteer Snow Bucket7830.738.1690
SBSN84BO50084" Skidsteer Snow Bucket8433.041.2725
SBSN90BO50090" Skidsteer Snow Bucket9035.444.2775
SBSN96BO50096" Skidsteer Snow Bucket9637.747.3805
SBSN108BO500108" Skidsteer Snow Bucket10842.553.3940
SBSN120BO500120" Skidsteer Snow Bucket12047.259.41010
346CEBOptional 346CEB 3/4 X 6 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
348CEBOptional 348CEB 3/4 X 8 Double Bevel Bolt On Cutting Edge c/w Bolts & Nuts
346CESBOptional 346CESB 3/4 X 6 Single Bevel Serrated Bolt On Cutting Edge c/w Bolts & Nuts
